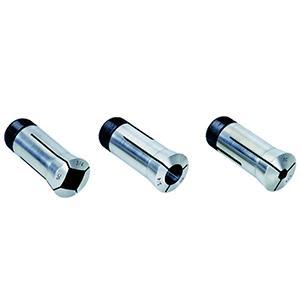

5C collet

Product Detail

5C COLLETS

⒈ Material:65Mn

⒉ Hardness:clamping part HRC55~60    elastic  part HRC40~45

⒊ This unit  is applicable  to  all sorts  of  lathes,which   spindle taper  hole  is 5C,such  as automatic lathes,CNC  lathes etc.




 order  No.



 Type

 Clamping  range



 Wt(kg)

mm

in

5C-01-d

Round

1~28

1/32~1-1/8

0.24

5C-02-S

 Square

3~19

1/8~3/4

0.24

5C-03-H

 Hex

3~22

1/8~7/8

0.24

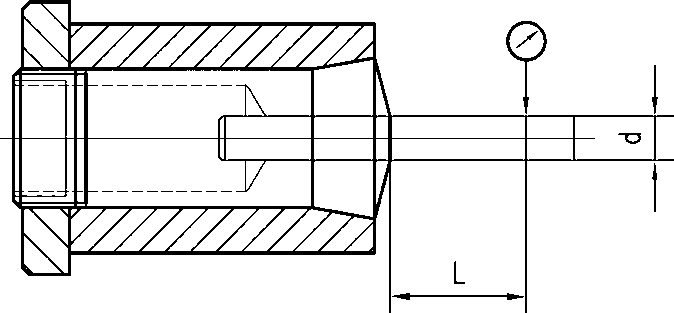

 lnspection  of  Accuracy







d

L

 Run  out

mm

in

mm

in

mm

1~1.6

1/32~1/16

6.35







0.0005







0.013

>1.6~3

>1/16~1/8

12.7

>3~10

>1/8~3/8

25.4

>10~16

>3/8~5/8

38.1

>16~20

>5/8~7/8

50.8




5C collet
