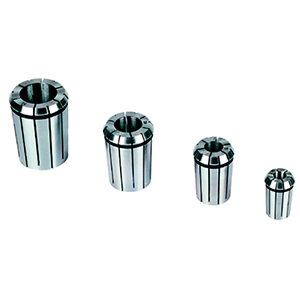

DIN6388B EOC collet

Product Detail

DIN6388B EOC COLLETS

DIN6388B EOC COLLETS

 Model

D

D1

d

L

L1

L2

L3

EOC16B

22.65

25.5

2~16

40

5.5

1.2

9.5

EOC20B

27.4

29.8

2~20

45

6

1.35

10

EOC25B

32.9

35.05

2~25

52

6

1.4

10

EOC32B

41.3

43.7

4~32

60

6

1.45

11

EOC40B

49.7

52.2

6~40

68

6

1.45

12

EOC50B

61.1

63.8

8~50

80

7

1.55

13

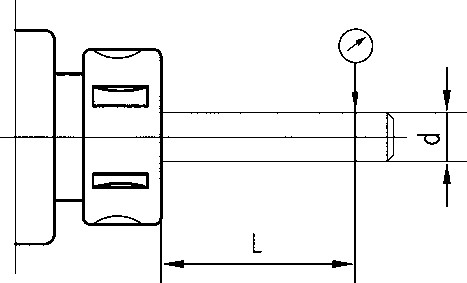

Inspection of Accuracy




D



L

 Run out tolerance

1.0~1.6

6





0.010





0.015

>1.6~3.0

10

>3.0~7.0

16

>7.0~10.0

25

>10.0~18.0

40



0.015



0.020

>18.0~24.0

50

>24.0~30.0

60

>30.0~50.0

80

0.020

0.030
